UT 9200 — Precise pipe localisation

Maximum accuracy with integrated GNSS documentation

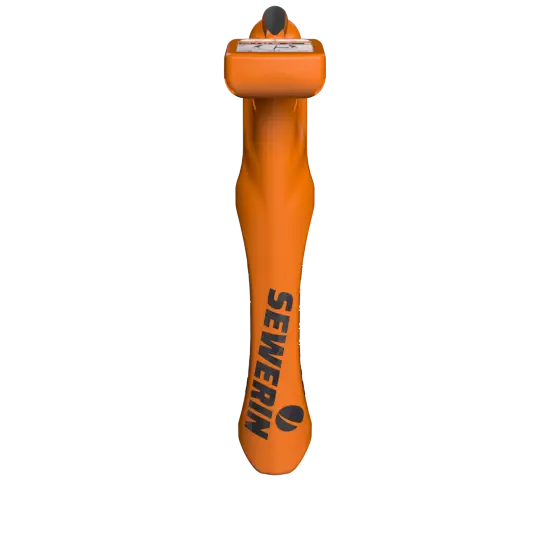

The UT 9200 system, consisting of the UT 9200 R receiver and the powerful 12-watt UT 9012 TX generator, offers state-of-the-art technology to accurately locate power and telecommunications cables as well as metallic gas and water pipes. Thanks to the integrated GNSS module, measurement results are saved directly with location data. The bright display, intuitive operation and wide range of frequencies make the UT 9200 system the premium solution for complex line documentation. The UT 9200 system is linked to an app and has a Bluetooth interface and is thus perfectly designed for future-proof operation.

Request product offer

Efficiency, precision and full control with the UT 9200 system

Passively locate live or signal-transmitting cables and supply lines
Auto-gain mode (gain control) for long pipe runs
Reliable depth measurement
100 frequencies to choose from
Even individual frequencies can be created
12 W UT 9012 TX generator (alternatively 5 W UT 9005 TX generator)
Up to 100 hours of operating time for the generators, 30 hours for the UT 9200 R receiver
Work effectively thanks to bi-directional communication between receiver and generator (wireless control)
Easily recognize current direction
Measure offset depth
Use location mode for locating probe
Identify ambient noise for optimum frequency selection
Network plans unclear? Clearly determine pipe runs with the dual output
Locate and calibrate at the same time thanks to the integrated GNSS module
Seamless documentation of measurement data using the "UT 9200 Com" app
Special receiver accessories for special tasks, e.g. step-voltage probe, marker ball antenna
Bluetooth for external GPS

Precise. Digital. Future-proof.

The UT 9200 system combines maximum precision with smart networking, ensuring efficient documentation in the field.

Automatic frequency selection for maximum precision

The UT 9200 R receiver can scan the ambient noise present and detect existing interference signals. It then suggests the optimum frequency.

Seamless documentation with GNSS and app

The integrated GNSS module and the "UT 9200 Com" app allow for simultaneous locating and calibration. All data is stored seamlessly and can be easily exported.

Can be expanded for special locating tasks

With accessories such as a step-voltage probe or marker ball antenna, you can flexibly adapt the UT 9200 system to any locating task.

Automatic frequency selection for maximum precision

The UT 9200 R receiver can scan the ambient noise present and detect existing interference signals. It then suggests the optimum frequency.

Seamless documentation with GNSS and app

The integrated GNSS module and the "UT 9200 Com" app allow for simultaneous locating and calibration. All data is stored seamlessly and can be easily exported.

Can be expanded for special locating tasks

With accessories such as a step-voltage probe or marker ball antenna, you can flexibly adapt the UT 9200 system to any locating task.

Use of the UT 9200 system - a wide range of applications for utility companies

Whether you are an energy supplier, public utility company or building company – the UT 9200 system helps you with precise locating even in densely built-up areas or under difficult conditions. Pipes can be reliably identified and documented, which minimises risks during building and renovation work. With GNSS-supported documentation in particular, network operators benefit from seamless recording and reliable planning. The UT 9200 system can also be used to efficiently support long-term pipe projects.
