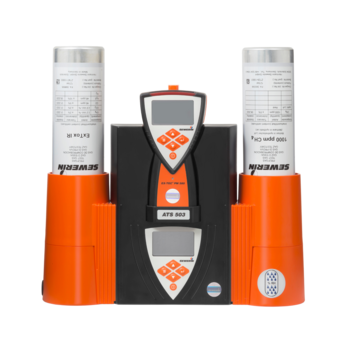

Testing device ATS 503

Automatic Test Sets ATS 503|501

With the ATS 503 and ATS 501 test devices, you can carry out functional tests and adjustments of the EX-TEC® PM 580, 550, 500 and 400 gas concentration measuring devices reliably and extremely efficiently.
Request product offer

Automate functional testing with the ATS 503|501


The ATS testing device can be operated in three operating modes:

  1. Automatic operating mode: All due function tests are carried out automatically as soon as a device is inserted into the switched-on test device. Only the partial device status test must be completed manually by the user.
  2. Timer operating mode: The due function tests start at a freely adjustable time. If a measuring device fails the function test, the adjustment can also be carried out automatically by the testing device in
    these two operating modes.
  3. Manual operating mode: The function test is started by the user at the touch of a button.
    For the gas warning range, the function test can be carried out in two variants: with a test gas and time-saving display test or with a test of the display accuracy.

In addition:

  • Meter batteries are automatically charged in the test device. If the timer operating mode is set to overnight, the measuring device is tested and charged in the morning.
  • A log of all function tests is created and stored in the test device and in the meter.

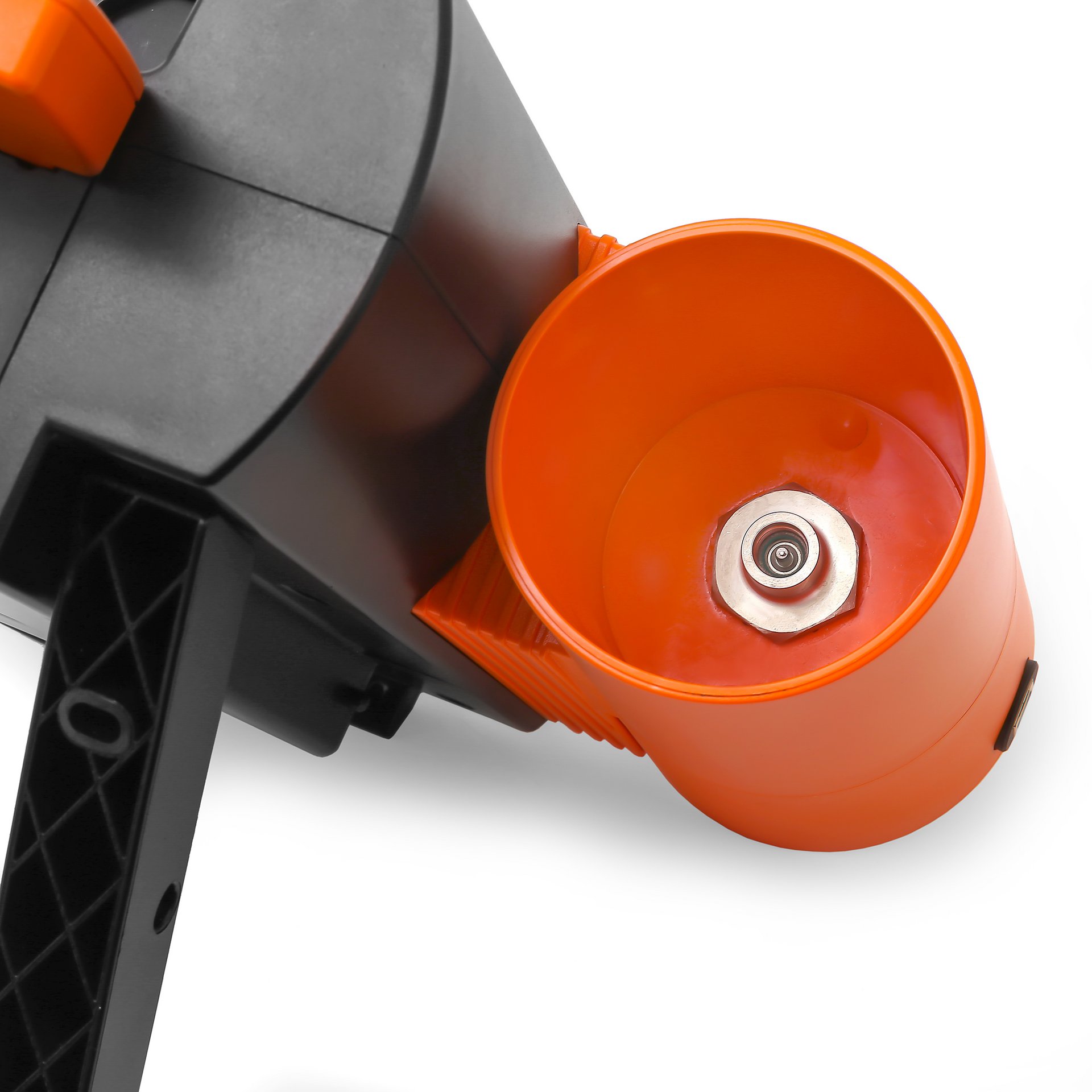

  • Three test gas sockets can be connected to the ATS 503 and one test gas socket can be connected to the ATS 501.

Efficient. Safe. Relieving.

The ATS 503|501 test equipment relieves you of tedious but necessary routine work in everyday life.

Saves time

Automatic function testing and adjustment save you valuable time in your day-to-day work.

Also charges the battery

If you use the timer operating mode overnight, a device is already charged and ready for use the next morning.

Creates a protocol

The function test is automatically logged and saved in the measuring device and in the testing device.

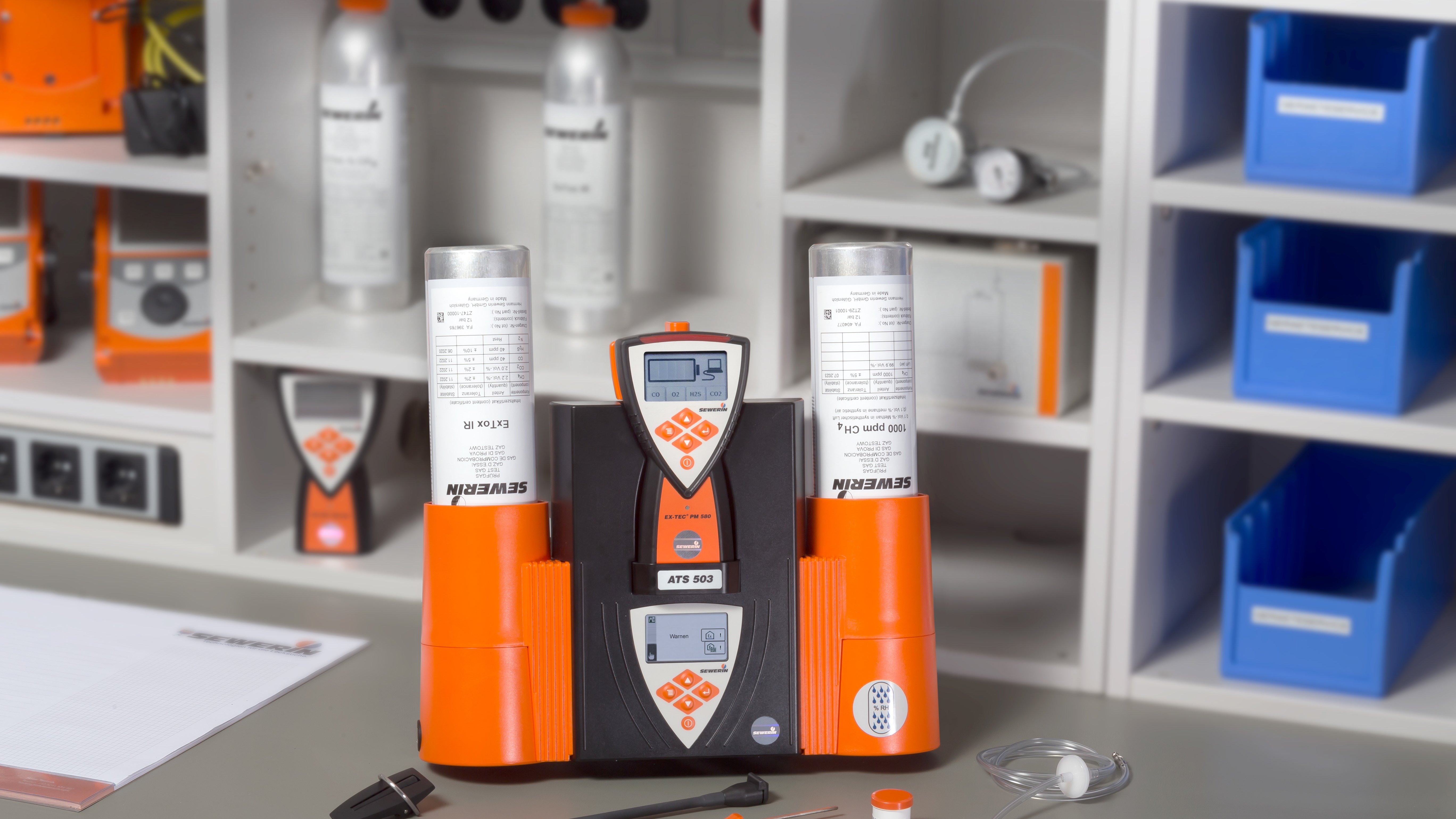

Application of the ATS 503|501 test station

The ATS 503|501 test station is used by utility companies and other users of the EX-TEC® PM 580, 550, 500 and 400 gas concentration measuring devices. It automates functional testing and adjustment. In this way, it makes everyday life easier for device maintenance staff in particular, but also for all other users.
